Slide Rail

Tackle deep excavations confidently with our modular slide rail systems. These systems, designed for pit, pipeline, and triple configurations, deliver strong, adjustable support that keeps trenches secure. Overlapping rails and sliding panels minimize soil movement and maximize safety, making them ideal for utility work, sewer installations, and other applications.

---

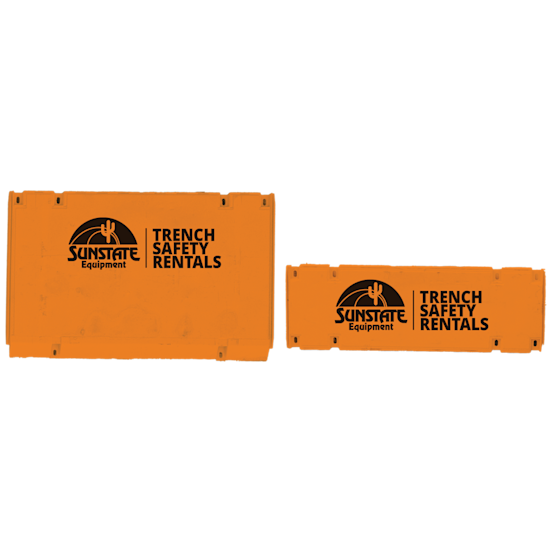

Slide Rail Panels

4-Foot Panels*

Size	Weight
4’ x 8’	1,760 lbs
4’ x 10’	2,200 lbs
4’ x 12’	2,590 lbs
4’ x 14’	2,950 lbs
4’ x 16’	3,340 lbs
4’ x 18’	3,740 lbs
4’ x 20’	4,210 lbs
4’ x 22’	4,520 lbs
4’ x 24’	5,120 lbs
4’ x 26’	6,550 lbs
4’ x 28’	6,890 lbs

8-Foot Panels*

Size	Weight
8’ x 8’	2,790 lbs
8’ x 10’	3,230 lbs
8’ x 12’	3,840 lbs
8’ x 14’	5,150 lbs
8’ x 16’	6,310 lbs
8’ x 18’	6,930 lbs
8’ x 20’	7,350 lbs
8’ x 22’	7,780 lbs
8’ x 24’	8,200 lbs
8’ x 26’	9,220 lbs
8’ x 28’	10,400 lbs

*Slide Rail Panel sizing is universal: No inside or outside designation.

---

Spreader Posts

Single-Track

Length	Weight
14’–8”	1,930 lbs
16’	1,995 lbs

Double-Track

Length	Weight
19’–8”	3,620 lbs
20’	3,780 lbs
22’	4,040 lbs

Triple-Track

Length	Weight
27’	8,620 lbs
30’	10,190 lbs
32’	10,310 lbs
34’	10,770 lbs

---

Corner Posts

Single-Track

Length	Weight
9’	740 lbs
13’	1,030 lbs

Double-Track

Length	Weight
18’	2,510 lbs
20’	2,890 lbs
22’	3,180 lbs

Triple-Track

Length	Weight
24’	5,540 lbs
26’	6,320 lbs
28’	7,200 lbs
30’	7,450 lbs
32’	7,700 lbs

---

Side-by-Side Utility Panel Guides

Panels Guides

Size	Weight
4’ x 10’	6,130 lbs
4’ x 12’	7,270 lbs
4’ x 14’	8,420 lbs
4’ x 16’	9,490 lbs
4’ x 18’	10,680 lbs
4’ x 20’	11,660 lbs

Panels Guide Sheets

Size	Weight
12’ x 2’	1,110 lbs
14’ x 2’	1,290 lbs
16’ x 2’	1,430 lbs
20’ x 2’	1,750 lbs
