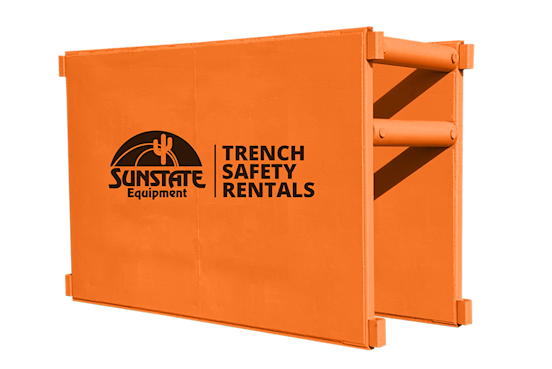

Steel Trench Boxes

Protect crews in deep or unstable excavations with heavy-duty steel trench boxes. Built to withstand high pressure, these shields provide strong, reliable wall support for utility, sewer, and construction projects, keeping workers safe while maintaining trench stability.

---

Size	Weight
4' x 18' x 4"	2,500 lbs
4' x 10' x 4"	2,850 lbs
4' x 12' x 4"	3,380 lbs
4' x 16' x 4"	4,130 lbs
4' x 20' x 4"	4,970 lbs
4' x 24' x 4"	5,665 lbs
4' x 28' x 4"	6,720 lbs
4' x 32' x 4"	10,750 lbs
6' x 10' x 4"	4,120 lbs
6' x 12' x 4"	4,790 lbs
6' x 16' x 4"	5,970 lbs
6' x 20' x 4"	7,220 lbs
6' x 24' x 4"	7,896 lbs
6' x 24' x 6"	11,394 lbs
8' x 8' x 4"	2,990 lbs
8' x 10' x 4"	5,090 lbs
8' x 12' x 4"	6,000 lbs
8' x 16' x 4"	7,154 lbs
8' x 20' x 4"	8,920 lbs
8' x 24' x 4"	11,420 lbs
8' x 24' x 6"	12,290 lbs
8' x 28' x 6"	12,320 lbs
8' x 32' x 8"	20,224 lbs
10' x 10' x 4"	6,268 lbs
10' x 12' x 4"	7,432 lbs
10' x 16' x 4"	9,040 lbs
10' x 20' x 4"	10,890 lbs
10' x 24' x 6"	13,912 lbs
10' x 28' x 6"	16,800 lbs
10' x 32' x 8"	25,289 lbs

Box Size	Pipe Clearance
8-foot	60" - 66"
10-foot	69" - 85"

Pipe Spreader: 41 pounds per foot
